gsaf11a5d005v063
  • gsaf11a5d005v063
gsaf11a5d005v063

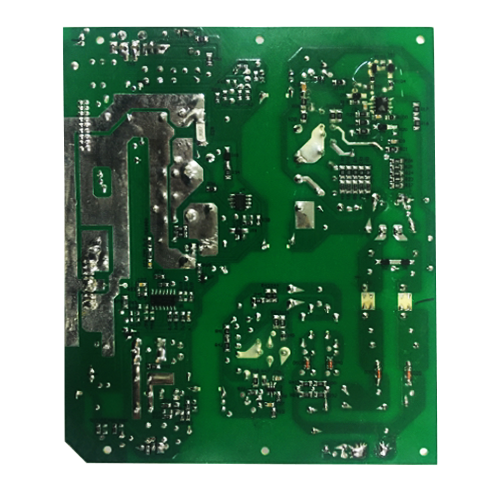

产品型号:gsaf11a5d005v063
interface:female connectors
input:100v-240v
output:5v/1a 5v/11.5a
power:62.5w
dimension:130*155*31mm
weight:302g
output characteristics:5v/1a;5v/11.5a;12v/1a
protect function:open-loop overvoltage protection,overcurrent protection,overvlotage protection,overtemperature protection
applicable environment:used for shared power cabinet and works under 0-40℃ environment
certification scope:obtained ce,cb,cqc certificates bundled with shared power cabinet together
产品详情

1.the 5v main output can charge for 6 channels power bank;

2.the 5v main output can be used for driving motors after raised voltage to 12v by dc-dc booster

3.provide independent 5v/1a output for system power supply.
